Hosokawa Alpine Łamacz płatka Bexmill

Innovative crushing technology

from laboratory-scale to industrial-scale production

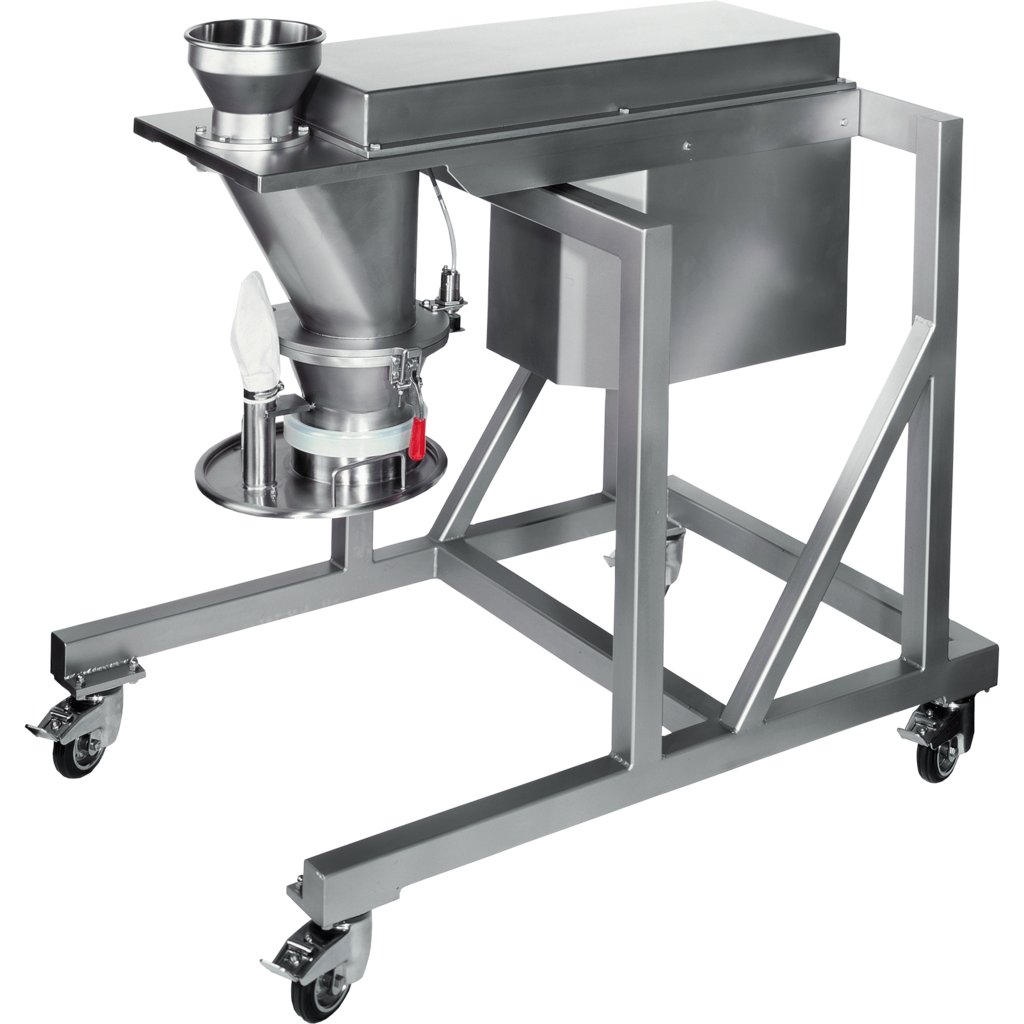

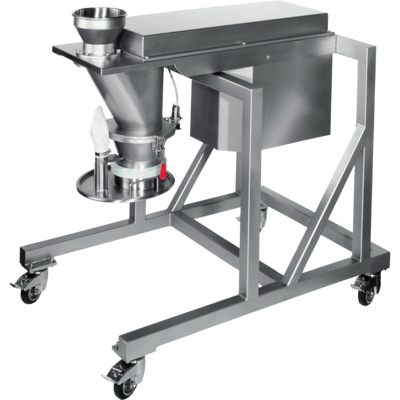

Bexmill ABM

Za pomocą Bexmill ABM miękkie i średnio twarde materiały są delikatnie kruszone. Bexmill jest również nazywany młynem koszowym lub młynem stożkowym.

Młyn może być ładowany zarówno w sposób ciągły, jak i szarżowy. Z podajnika materiał przeznaczony do rozdrobnienia dociera do obszaru mielenia.

Dzięki stożkowemu kształtowi Bexmill ABM może pracować w przeciwieństwie do klasycznej kruszarki płatkowej przy wyższych obrotach. Dzięki temu można osiągnąć większą przepustowość i wyższą próbę.

Możliwość pracy zarówno na sucho jak i na mokro.

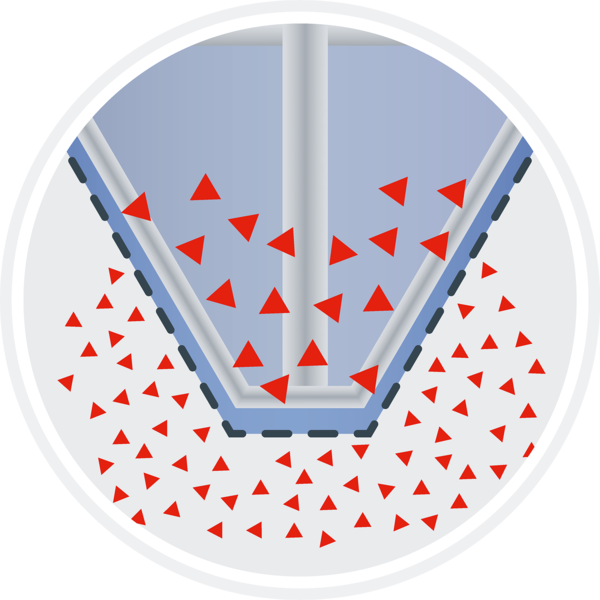

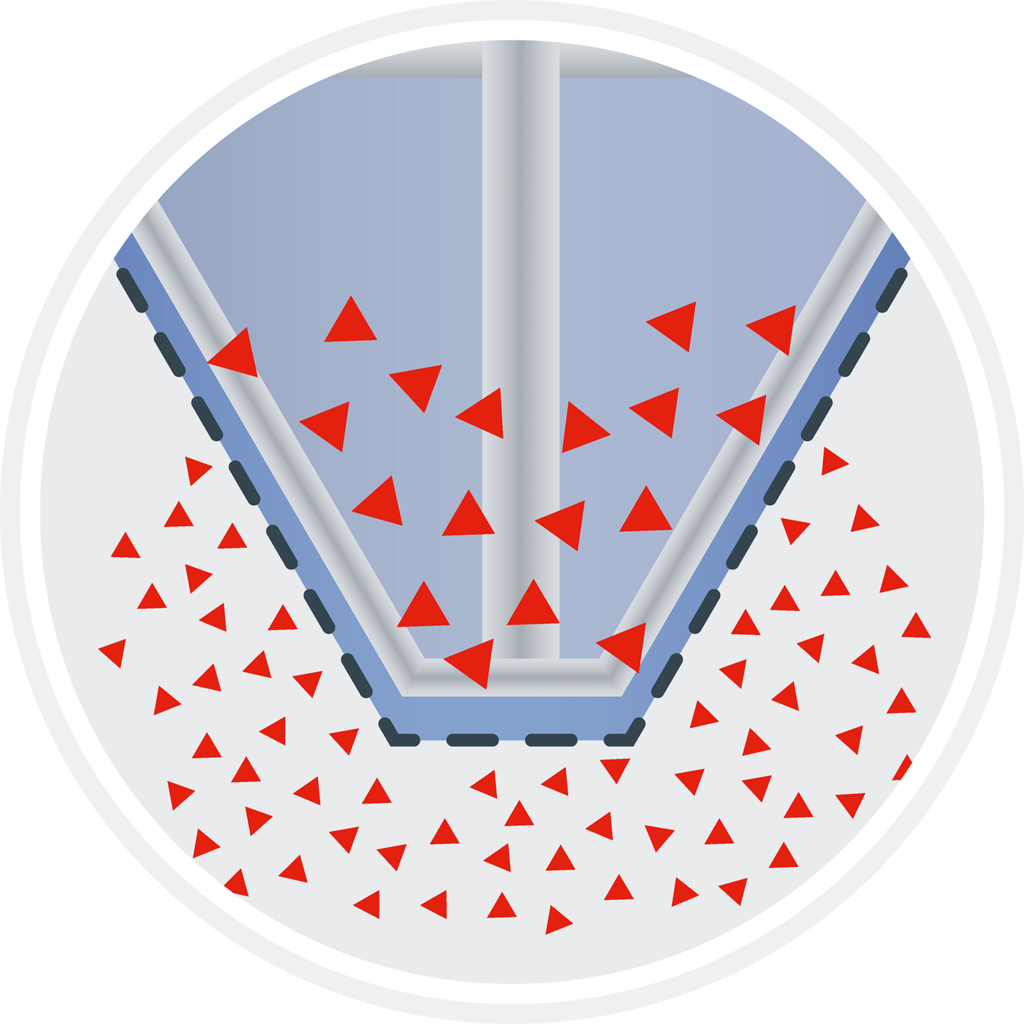

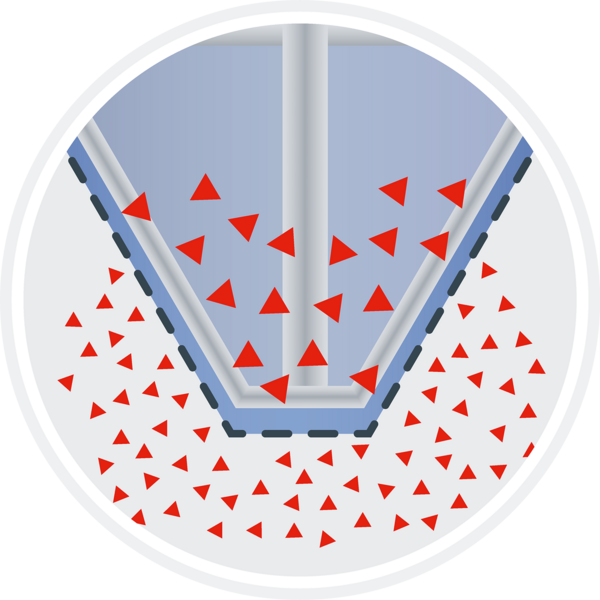

Principle of operation

Crushing with the Bexmill brings several advantages right from the start:

  • Bulk materials are homogenised, the flowability improved, the bulk density increased, agglomerates dispersed and rejects crushed gently

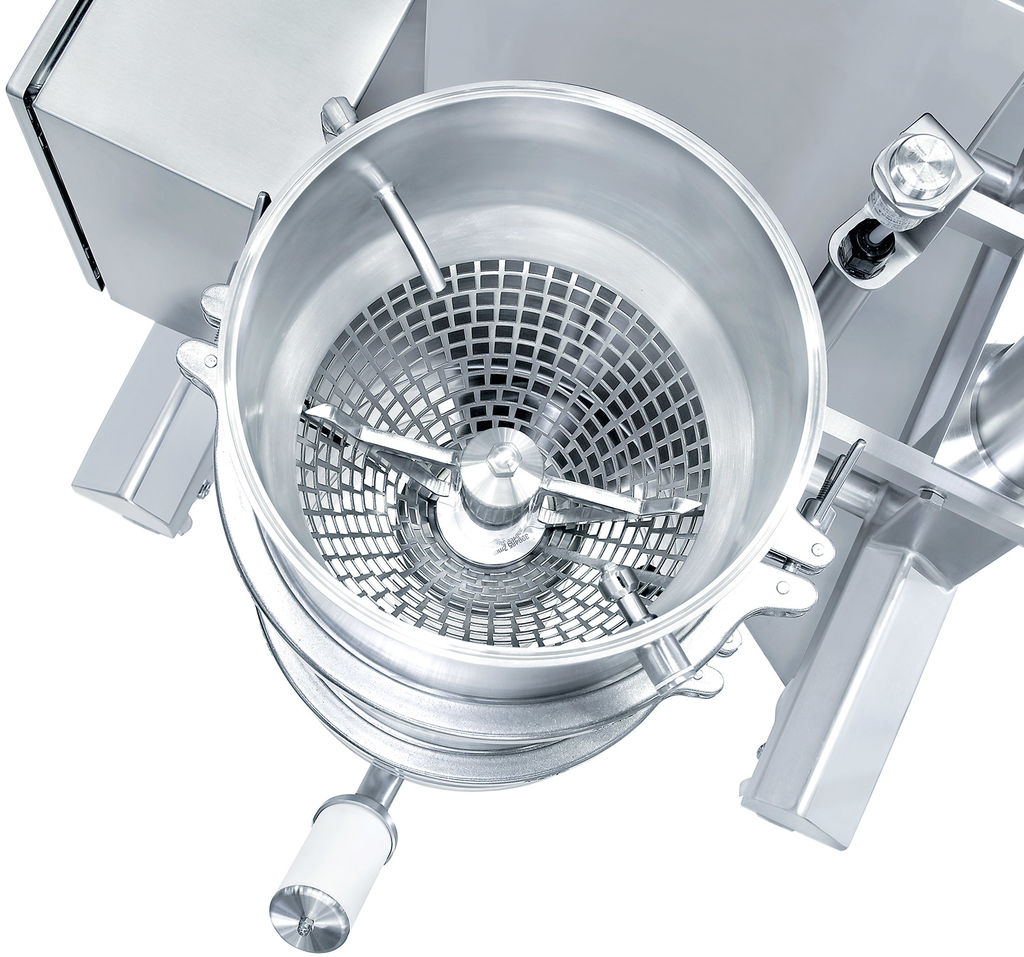

  • The conical shape of the grinding chamber guarantees high speeds, higher throughput rates and higher fineness values
  • Wide product and application range – from moist to dry feed material
  • The rotor can be adjusted without any need to open the grinding chamber, and this ensures an optimum crushing effect

Applications

Tailored to your application

  • Crushing of flakes, homogenisation of mixtures, disintegration of agglomerates, finishing of granulates
  • After mixer agglomeration, after fluid beds and kilns
Mleko w proszku

Powdered milk

The deagglomeration of the powder downstream of the mixing and drying steps constitutes an essential element of the production of high-quality milk powder.

Kostka cukru

Salt & Sugar lumps

Hygroscopic products have a tendency to form lumps during their storage. Homogenisation ensures a smooth production process.

Wyroby piekarnicze

Salty snacks / Sweet pastries

Broken goods need no longer be disposed of but can rather be returned to the production process as rework material.

Bexmill ABM 80 ABM 125 ABM 150 ABM 200 ABM 225 ABM 300 ABM 325 ABM 400 ABM 600
Drive (kW) from above 0.55 - 1.5 4 - 5.5 - 15 22
Drive (kW) from below - 1.5 - - 4 - 7.5 - -
Weight (kg) 90 250 200 200 350 380 450 480 700
Throughput (kg/h) 10-100 20-200 20-200 100-1,000 100-1,000 500-4,000 500-4,000 1,000-8,000 1,500-10,000
Smallest batch size (g) 100 150 250 500 500 750 750 1,000 1,500

The facts speak for themselves

Design

  • Dust-tight
  • Product-contacted parts in stainless steel
  • FDA-approved

Options

  • ATEX design
  • Position of drive
  • Gas-thight design
  • Installation frame in mobile design
  • Flange geometry

Accessories

  • Rotor
  • Inlet and outlet
  • Screens

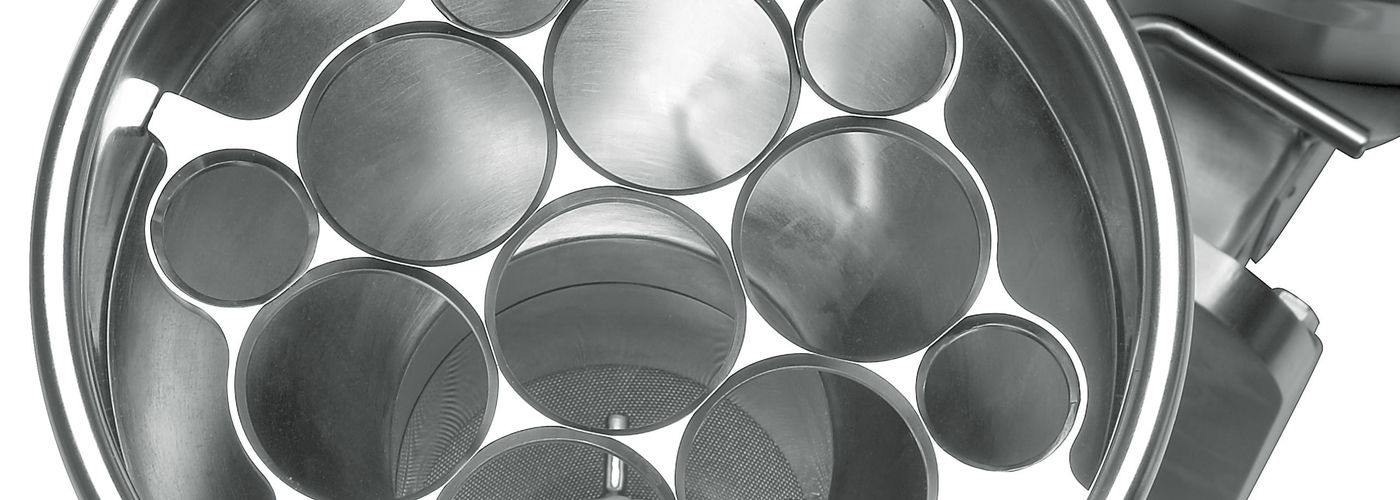

Your screen for optimum product quality

Choose a screen insert depending on the product properties for the perfext interaction between the grinding tool and the screen:

  • Round perforations
  • Rasp-like perforations
  • Slotted perforations
  • Square perforations

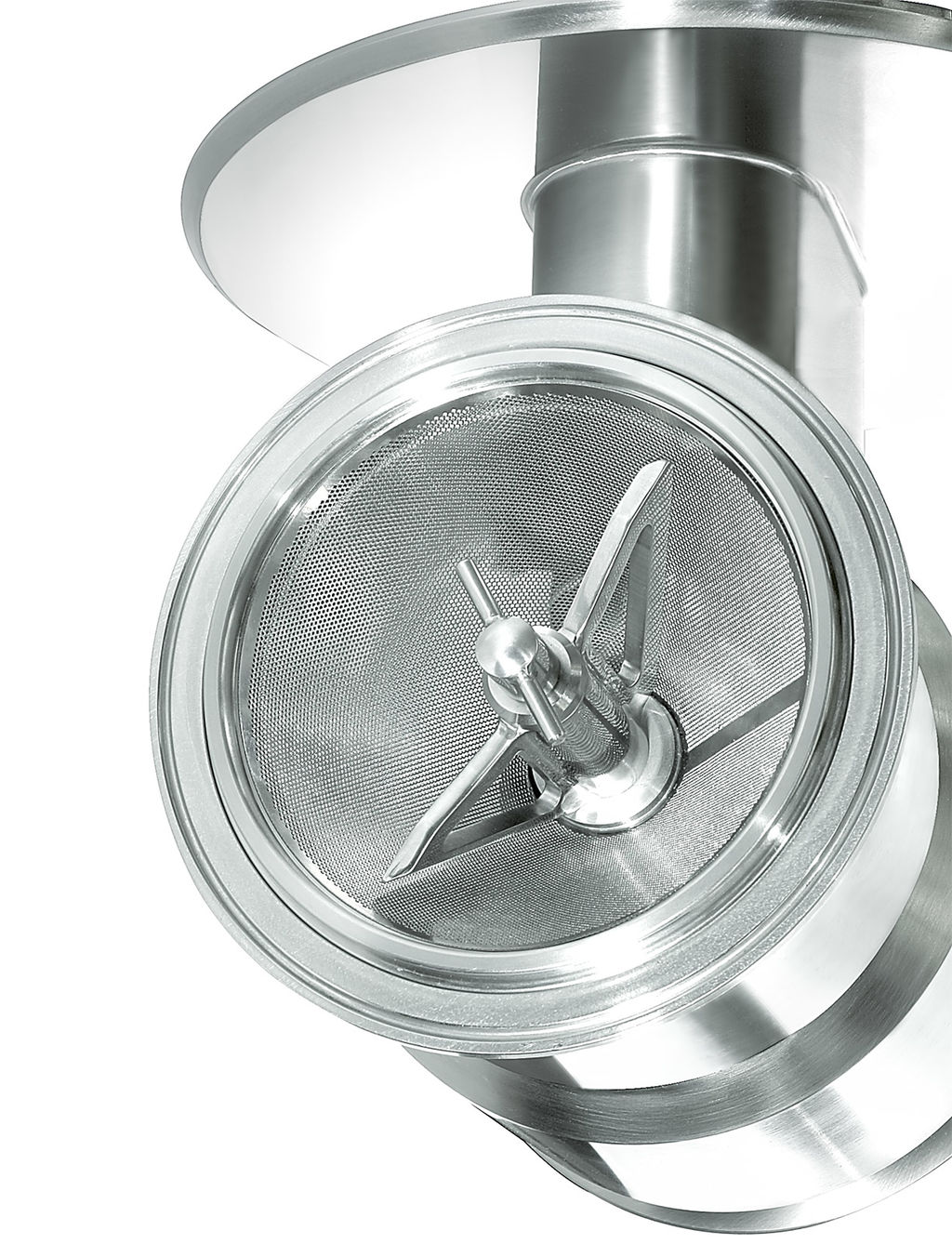

The amount of energy required is generally low and corresponds roughly to the force that one can apply by manual crushing. The product is crushed between the rotor and the screen. A defined top cut is achieved in this way. Typical screen mesh sizes range from 0.5 – 10 mm.

Thanks to the low energy input, the end product is low in fines and the crushing process is low in noise. The feed material must not necessarily be dosed. The machine does not need to be dedusted.

Test before you buy

Our test center can perform product trials with your test material. That lets you see the quality of our systems for yourself.

We will be happy to advise you – get in touch with us!
