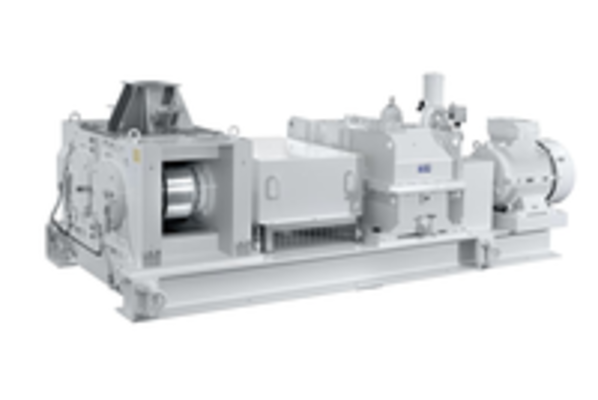

Prasa walcowa ECP

Prasa walcowa ECP

Dzięki wysokociśnieniowym młynom walcowym produkty są wytwarzane z wytrąconym rozkładem granulek.

Wysokociśnieniowa kruszarka walcowa nazywana jest również kruszarką walcową lub prasą walcową.

The mill feed is transported to the most narrow gap by the counter rotating rollers through friction effects. Both rollers are pressed against each other using hydraulics. This milling force is transferred to the mill feed. Through selective contact of the individual granules are created at extremely high inner tensions which lead to fractures.

The use of the optimal milling force leads to compact mills with extremely low energy requirements.

Because only the outer particles of the material bed have contact with the surface of the rollers, milling that is almost contamination-free is possible.

High Pressure Roller Mills are used in the cases of medium-fine crushing of hard materials such as ceramics, minerals from 5 up to 9 on the MOHS hardness scale, metals and metal alloys.

High Pressure Roller Mills ECP are used in continuous operation or in a closed circuit with screening machines or classifiers.

  • Pre-crushing before fine grinding
  • Non-fine crushing
  • Sharp-edged granules
  • Narrow granule distribution

  • Roller diameter: 200 mm to 1,100 mm
  • Working width of 50 to 1,200 mm
  • Drive unit of 11 kW to 500 kW
  • Gravity feeding
  • Screw feeding for optimal throughput capacity
  • Throughput capacity of 0.2 – 120 t/h
High Pressure Roller Mill ECP ECP 3 ECP 4 ECP 5 ECP 7 ECP 8 ECP 9
Max. press force (kN) 360 600 850 3000 4500 6000
Roller diameter (mm) 300 400 520 712 850 1100
Throughput in t/h 0,5 - 1,2 0,8 - 5 2 - 8 5 - 15 8 - 30 20 - 80 80 - 120
The throughput is dependent on the product.
