Spiralne młyny strumieniowe są często używane w przemyśle farmaceutycznym, a także do produkcji wysokowartościowych chemikaliów.

Ponieważ młyny spiralne Aeroplex AS nie mają obracających się elementów, w konsekwencji nie ma łożysk i uszczelnień wału, a zatem nie są stosowane żadne środki smarne. Zanieczyszczenie z tych źródeł jest zatem niemożliwe.

Prosta geometria elementów młyna ułatwia ich czyszczenie, a także umożliwia sterylizację całego młyna.

  • Spiralny młyn strumieniowy do bardzo drobnego rozdrabniania miękkich materiałów (do około twardości Mohsa 3), które wykazują krucho-krystaliczne pękanie w zakresie rozdrobnienia od 10 do 150 µm

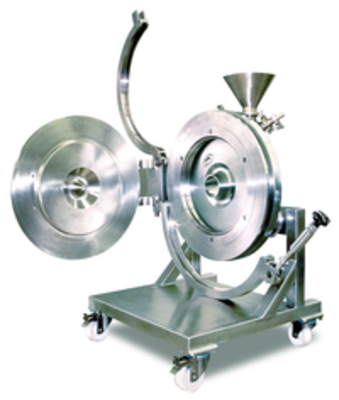

  • Konstrukcja (rysunek): płasko-cylindryczna komora mielenia bez elementów obrotowych
  • Część górna z zawiasami do tyłu ułatwiająca otwieranie, zamykanie i zdejmowanie

The grinding air is injected tangentially via Laval nozzles in the nozzle ring into the machine. This causes a spiral jet of air to form in the grinding zone, from which the mill derives its name. A high pressure forms in the mill as a result of the spiral flow of air that can rise to 1 bar overpressure in operation without product. The integrated injector is charged with compressed air which ensures that the product is conveyed into the machine against the overpressure present in the machine. This, however, is associated with a considerable compressed air consumption, which can be as much as 30% of the total grinding air requirement.

The feed product circulates close to the nozzle ring and is thus intercepted repeatedly by the air jets exiting the nozzles. Comminution is the result of interparticle collision caused by the particles flowing at different speeds in the nozzle jet. Comminuted material is conveyed along with the air to the discharge, the spiral flow subjects the particles to a classification: only fine particles are discharged, coarse particles remain in the mill.

Alpine's spiral jet mills are characterised by a special geometry of the mill housing in the area of the discharge, which contributes towards a finer classification effect and a sharp top cut.

The product also has an effect on the air flow within the machine: the more product there is in the machine, the more the spiral flow is braked and the lower is the centrifugal force and the coarser the end product. The relationship of the product to the classifying air flow rate is therefore the most significant parameter for setting the fineness of the spiral jet mill. In principle, different nozzle angles can also be used to achieve the required fineness values, whereby the complete nozzle ring must be exchanged in this case.

  • Vertical mill housing for easy handling
  • Special grinding zone geometry for products free of oversized particles
  • Grinding zone without rotating components
  • Material feed via injector
  • Exchangeable nozzle ring
  • Stainless steel design, product-contact surfaces with a high quality of finish (order-specific)
  • Easy to dismantle and clean
  • CIP/SIP-capable

Ultrafine size reduction of dry materials with a crystalline structure up to a Mohs' hardness of 3. Alpine jet mills are used predominantly for high-grade pharmaceutical products, e.g. antibiotics or fine-grade chemicals, especially when high demands are made of the purity and fineness of the end products. The most common requirements at a max. feed size of approx. 1.5 mm are end-product fineness values with a d97 ranging between approx. 5 and 30 µm

Spiral jet mill 200 AS Baseline

Your access to the fine world

The spiral jet mill 200 AS Baseline combines a well-known and proven technology with high economic efficiency. The focus is on improved usability and clever design solutions. All parts in contact with the products are fully cGMP compliant.

Key features:

  • State-of-the-art design results in superior usability
  • cGMP design allows good cleanability with all relevant parts in AISI 316 L and FDA approved
  • Plug-and-play design for immediate use after delivery
  • Improved ergonomics
  • An innovative dosing system to feed the material directly from the raw material container
  • Exchangeable inserts reduce maintenance costs and allow processing difficult materials
  • All that in a very compact design and at an affordable price
