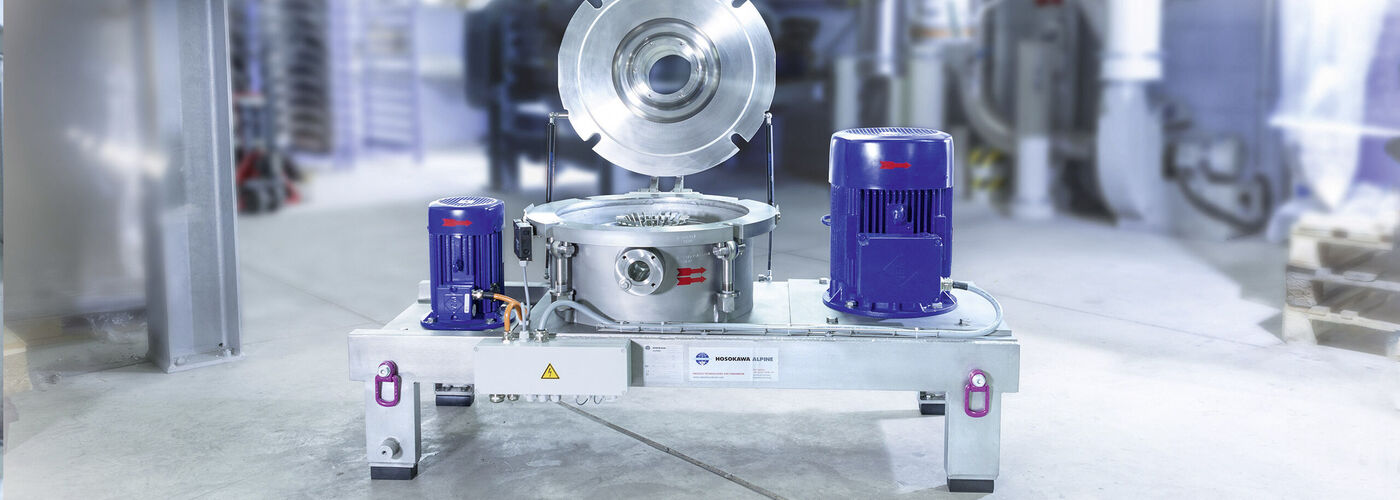

ACM

Młyn klasyfikacyjny ACM był pierwszym młynem klasyfikacyjnym na rynku w 1962 r. Od tego czasu ACM jest stale rozwijany i dostosowywany do zmieniających się potrzeb rynku. Dzięki ponad 1000 referencjom na całym świecie znajduje zastosowanie w każdej branży:

  • Chemia: bisphenol, tartaric acid, E-PVC, fungicides, herbicides, stearates
  • Powłoki proszkowe: epoxy, polyester, hybrids, UV-curing acrylates, polyamide
  • Farmacja/Kosmetyki: face powder, ascorbic acid, tartaric acid
  • Spożywka: sugar, cacao, starch, fish meal, xanthan, guar flour, lactose
  • Minerały: talc, kaolin, calcium sulphate, bauxite, limestone

Principle of operation

The product is fed into the ACM pneumatically. Size reduction is a result of the feed product impacting against the rotating grinding elements and against the stationary liner. At beater tip speeds of up to 140 m/s, fineness values of d97 = 10 µm are achieved. The product becomes entrained in the cooling, conveying and classifying air drawn through the mill by the downstream fan and is routed along the guide vanes of the vane ring.

Characteristic for the ACM is the integrated dynamic classifier. The product/air mixture is distributed uniformly by the guide vane ring to the rotating classifier. Because of the two opposing forces and the different masses of the particles, the product is separated in the classifying zone into a coarse fraction and a fine fraction. The coarse material is rejected by the classifying wheel and returned to the grinding zone for further comminution. The fines pass through the classifying wheel and exit the mill. The cut point is a function of the classifying wheel speed, which can be steplessly adjusted even during operation.

Features

  • Grinding and classifying in one machine
  • Compact and space-saving design
  • Cool and gentle grinding
  • Steep particle size distributions

  • Sharp and easily adjustable precision of cut
  • Simple to clean and maintain
  • High availability
  • Low noise emission

  • Low specific energy consumption
  • Pressure-shock-resistant PSR 11
  • Wear-protected
  • Suitable for combined grinding and drying

Designs

Four different design variants plus a laboratory version of the ACM were developed to ensure being able to fulfil customer requirements in a flexible manner.

  • ACM CX - The coaxial bearing arrangement of both classifier and grinding disc shafts makes a vertical product discharge possible, which in turn prevents product deposits.

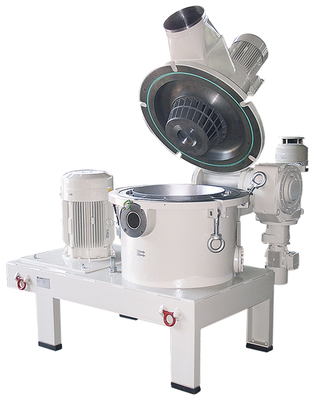

  • ACM CL with direct classifier drive is ideal for all those applications where the preferred configuration is a horizontal product discharge duct that has the shortest possible connection to downstream system components.
  • ACM EC (Easy Clean) was developed to meet the demands for quick and easy cleaning. This is especially important for those branches of industry where the product is changed frequently or for batch production.
  • ACM EC-CL combines the advantages of the CL model, namely compact configuration with short connections to downstream system sections, with those of the EC model, with the main focus laid on short cleaning times.
  • ACM 2 and 5 for laboratory and small-batch production. With the newly developed easy-clean concept, the Mikro ACM machine sizes 2 and 5 offer a high degree of user-friendliness and a minimum of cleaning effort when changing products. A space requirement of just 15 m², a mains power socket and a compressed air connection is all this mill needs for operation.

In addition to the above mentioned designs, the ACM Classifier Mill can be equipped or refitted with the newly developed E3 beaters. This way, Karl Bubenhofer AG has increased its throughput in powder coating grinding enormously and reduced its energy consumption at the same time.
Our case study gives you an insight into the customer project.

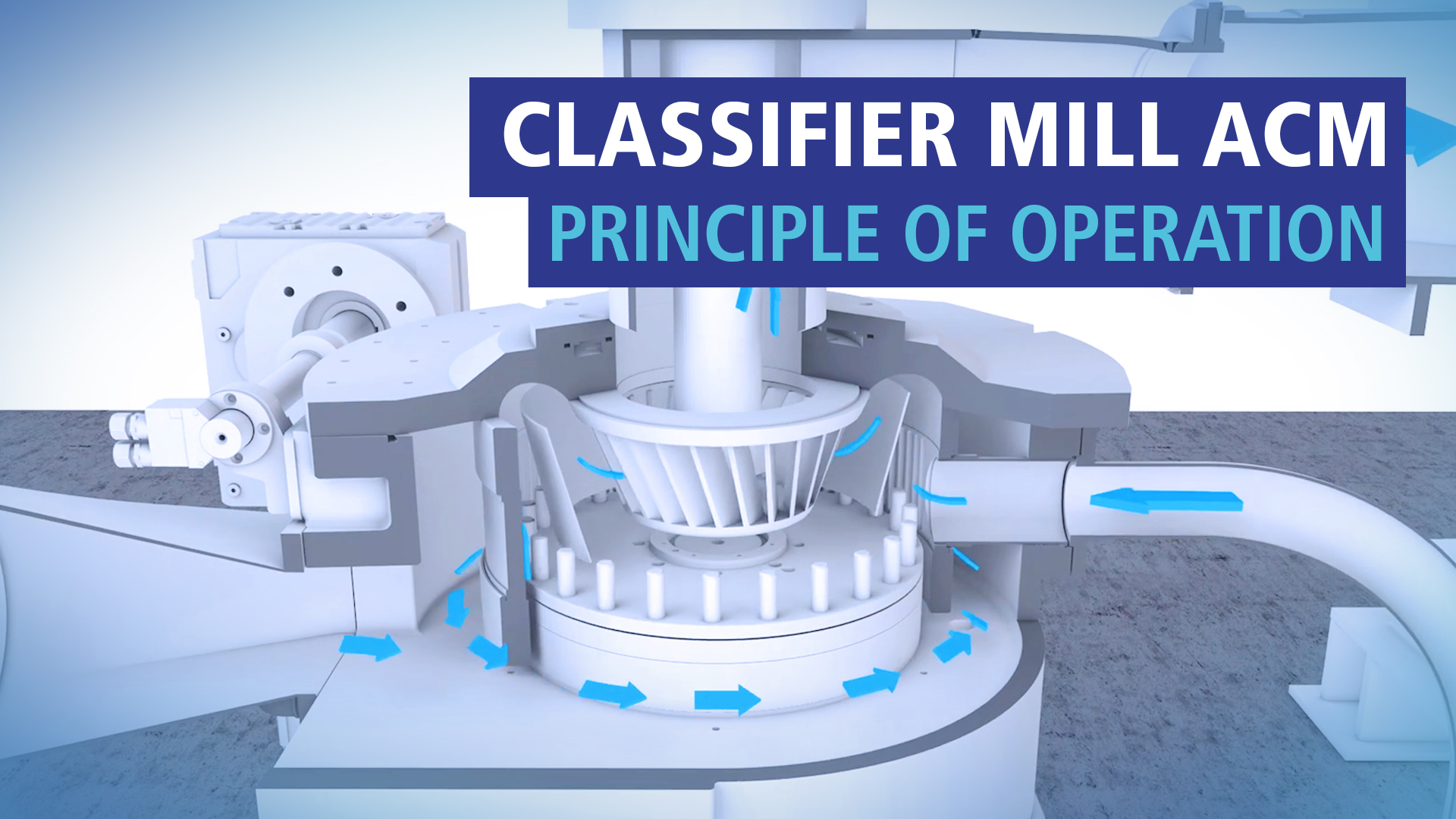

Animation ACM system | Principle of operation

Download
Broschüre ACM
Download
Download
Broschüre E3 Beater
Download
